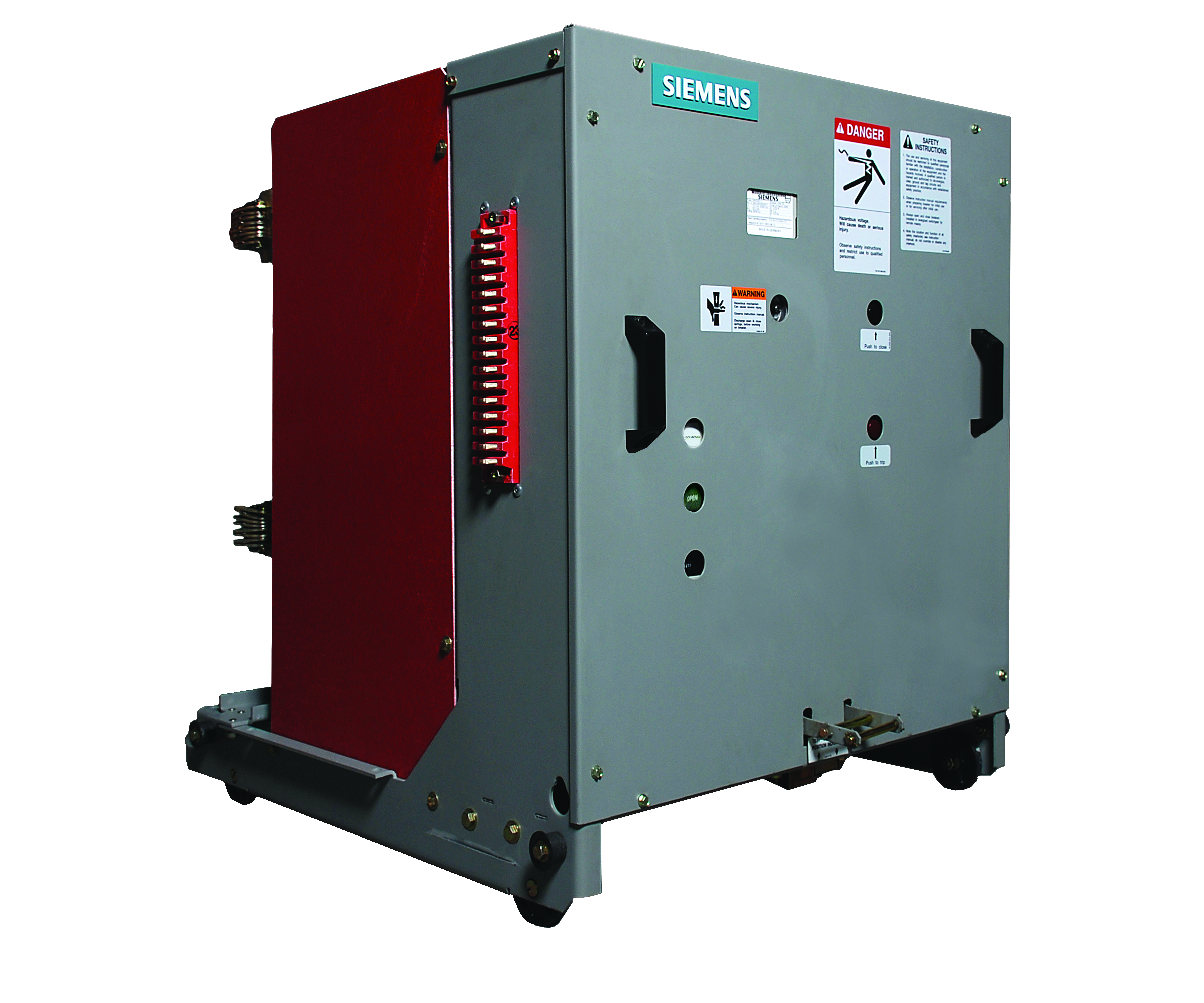

Medium-Voltage Circuit Breakers

Reliable technology, ease of operation and economy with Siemens medium-voltage circuit breakes
Be it energy supply corporations, industry or power stations, any owner or user of primary distribution systems for medium voltage puts high demands on the switchgear. These include reliable technology, ease of operation and economy. With our complete range of circuit breaker and switchgear systems for medium-voltage, Siemens sets the standards when it comes to reliable and efficient solutions for special requirements.
Type GM-SGY Cell Parts Kits Up to 50 kA
Siemens offers the following type GM-SGY cell parts kits up to 50 kA [1-6]:
test details
  • A-1,200 A circuit breaker cell parts kit
  • A-2,000 A circuit breaker cell parts kit
  • A-3,000 A circuit breaker cell parts kit
  • B-1,200 A circuit breaker cell parts kit
  • B-2,000 A circuit breaker cell parts kit
  • B-3,000 A circuit breaker cell parts kit
  • C-VT tray cell parts kit
  • D-CPT tray cell parts kit
  • D-VT tray cell parts kit
  • D-Fuse cell parts rollout tray cell parts kit
  • E-VT tray cell parts kit
  • F-Fuse cell rollout tray cell parts kit
  • F-VT tray cell parts kit
  • F-CPT tray cell parts kit
Type GM-SGY Rollout Trays Without Transformers or Fuses
Siemens offers the following type GM-SGY rollout trays without transformer or fuses [1],[2]:
test details
  • F-5 kV 3Ø fuse rollout tray
  • 5 kV two VTs rollout tray
  • 5 kV three VTs rollout tray
  • 5 kVA CPT rollout tray for 5 kV fuses
  • 10 kVA/15 kVA CPT rollout tray for 5 kV fuses
  • 15 kV two VTs rollout tray
  • 15 kV three VTs rollout tray
  • 5 kVA CPT rollout tray for 15 kV fuses
  • 15 kVA CPT rollout tray for 15 kV fuses
Type GMSG Circuit Breaker Ratings - Constant kA
Type GMSG circuit breaker ratings are in accordance with the following standards [3], [7], [8], [9]:
test details
  • ANSI/IEEE C37.04-1999 standard rating structure for AC high-voltage circuit breakers
  • ANSI/IEEE C37.06-2009 AC high-voltage circuit breakers rated on asymmetrical current basis - preferred ratings and related required capabilities
  • ANSI/IEEE C37.09-1999 standard test procedure for AC high-voltage circuit breakers rated on a symmetrical current basis
  • ANSI/IEEE C37.010-1999 application guide for AC high-voltage circuit breakers rated on a symmetrical current basis.
Type GMSG Circuit Breaker Ratings - Historic Constant MVA
Type GMSG circuit breaker ratings are in accordance with the following standards [2,3,11,12,13,14]:
test details
  • ANSI/IEEE C37.04-1979 standard rating structure for AC high-voltage circuit breakers rated on a symmetrical current basis
  • ANSI C37.06-1987 AC high-voltage circuit breakers rated on a symmetrical current basis - preferred ratings and related required capabilities
  • ANSI/IEEE C37.09-1979 standard test procedure for AC high-voltage circuit breakers rated on a symmetrical current basis
  • ANSI/IEEE C37.010-1979 application guide for AC high-voltage circuit breakers rated on a symmetrical current basis.
